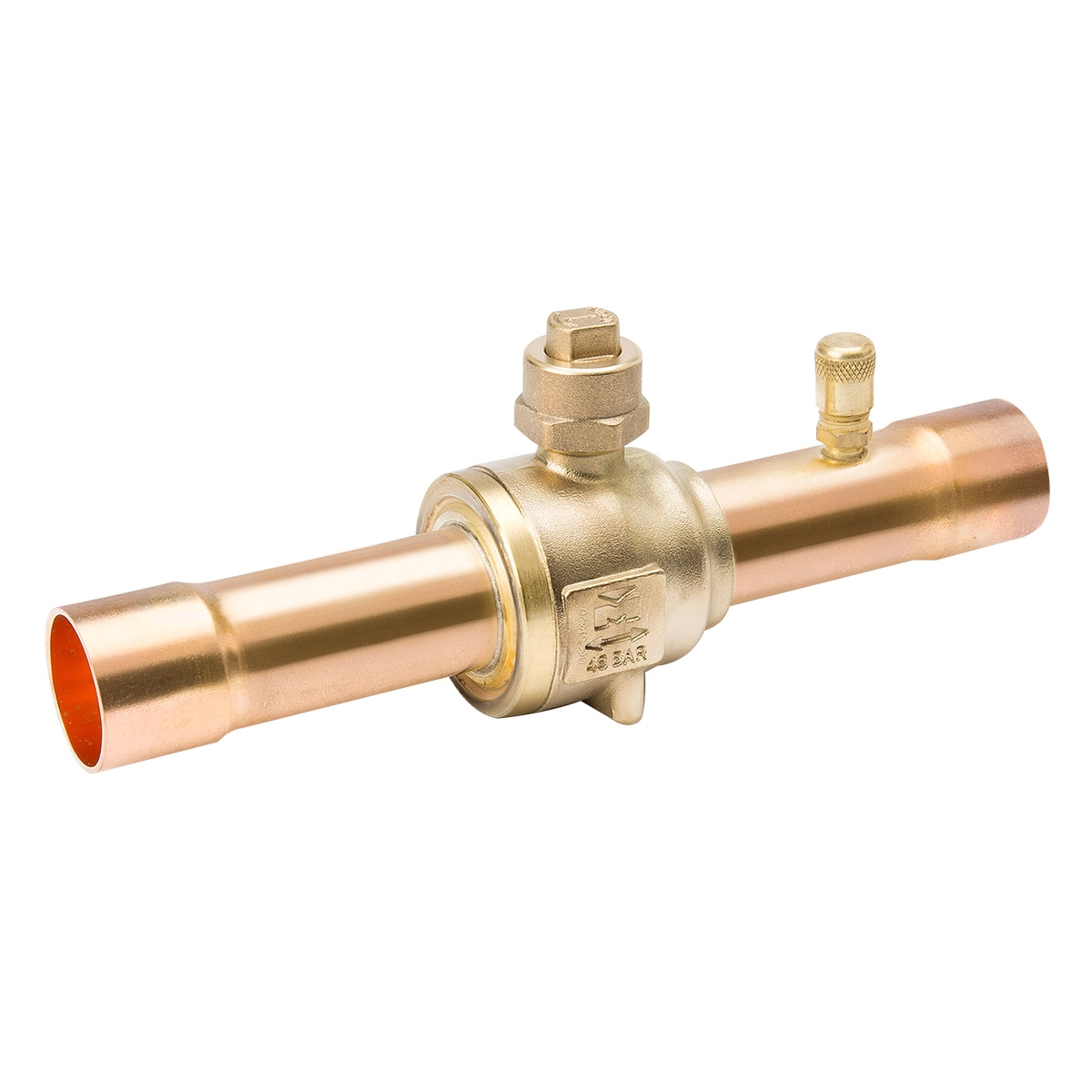

MUELLER INDUSTRIES BALL VALVE (Standard with Access Port)

BALL VALVE (Standard with Access Port)

Yellow Jacket - IndustrialPress
Type: Sale
CYCLEMASTER® ball valves have been designed to provide optimum system performance using full port construction and enhanced serviceability with a special quick turn cap.

Inquiry / Quote

To: Yellow Jacket - IndustrialPress

Description

Style: Standard with Access Port

CYCLEMASTER® ball valves have been designed to provide optimum system performance using full port construction and enhanced serviceability with a special quick turn cap.

feature
Quality & Technical Information
  • Design Pressure (DP) / Maximum abnormal pressure (MAP): Up to 775 psig, 53 bar
  • Continuous operating temperature (COT): -40°F/300°F, -40°C/149°C
  • Full port construction to match line size ID
  • Internally equalized ball design
  • Rupture-proof encapsulated stem
  • Bi-directional flow
  • MCM™ Seal Technology
  • UL/cUL Listed, Conforms to Pressure Equipment Directive 2014/68/EU, CRN 0C1241.9C
